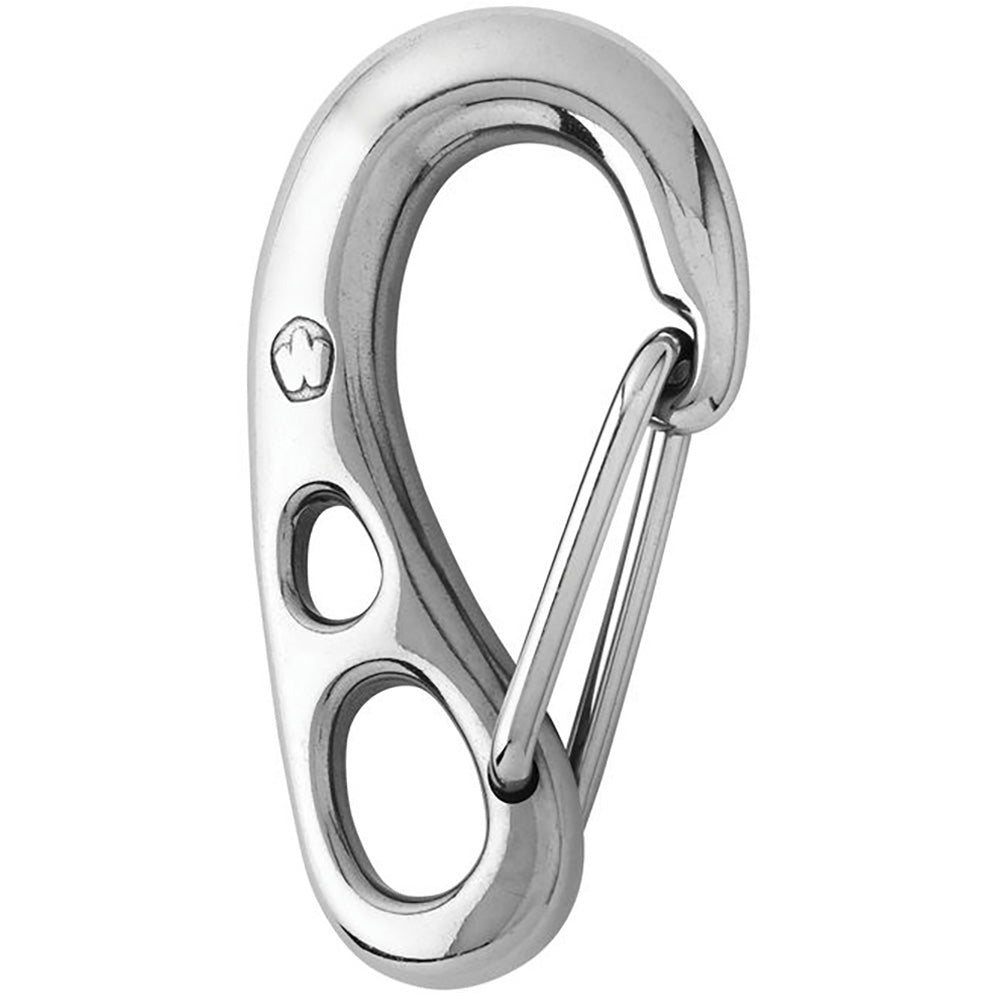

Wichard HR Safety Snap Hook - 100mm Length - 3-15/16" [02382]

Wichard HR Safety Snap Hook - 100mm Length - 3-15/16" [02382]

Regular price $76.99 USD
Regular price $112.80 USD Sale price $76.99 USD
Sale Sold out

HR Safety Snap Hook - 100mm Length - 3-15/16"

Features:

  • HR 17.4 PH stainless steel grade forged snap hook
  • Various applications on board
  • Outstanding working and breaking loads
  • Modern design

Applications:

  • Various uses on board: fastening applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb)3700 / (kg) 1680
  • Breaking load: (lb) 8810 /  (kg) 4000
  • Weight: (lb) 0.368 / (g) 167

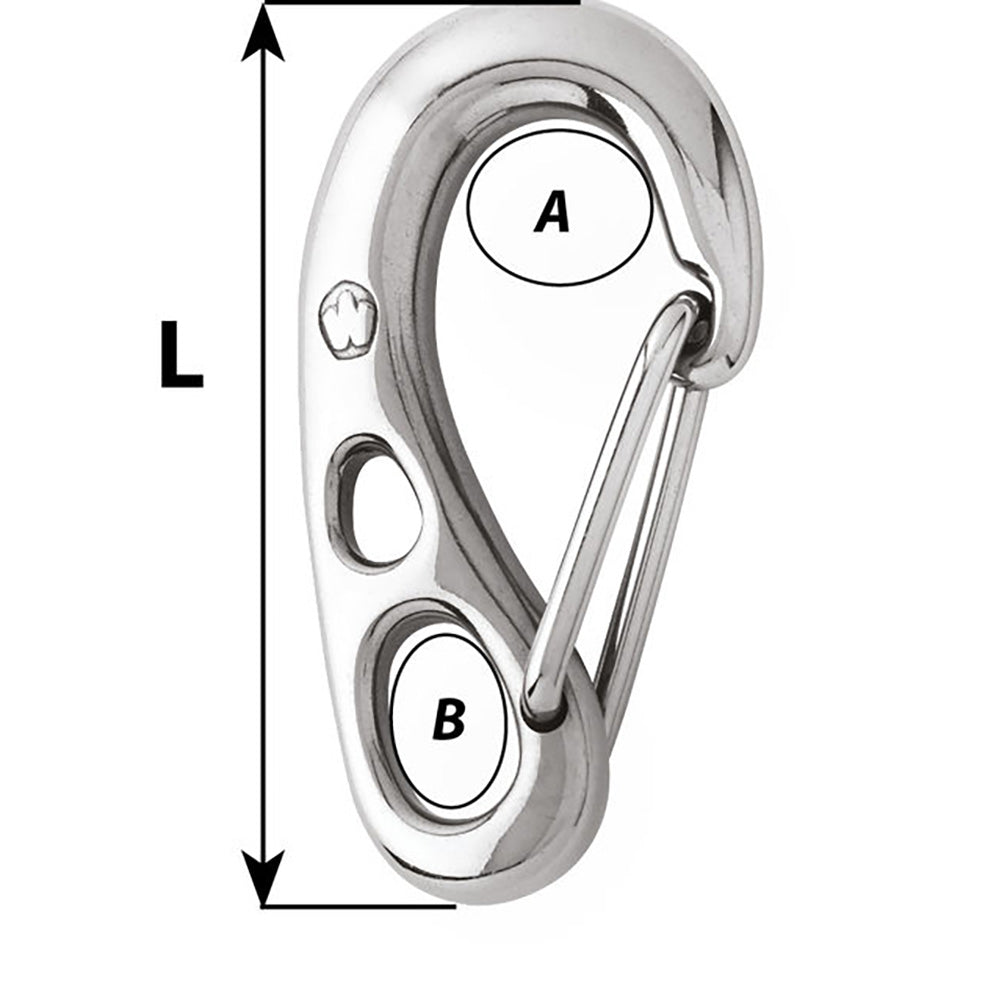

Dimensions:

  • A: (inch) 43/64" / (mm) 17
  • B: (inch) 35/64" / (mm) 14
  • Length: (inch) 3 15/16" / (mm) 100

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual
