Wichard HR D Shackle - 14mm Diameter - 35/64" [11207]
Wichard HR D Shackle - 14mm Diameter - 35/64" [11207]
Regular price
$213.99 USD
Regular price
$316.20 USD
Sale price
$213.99 USD
Unit price
/
per

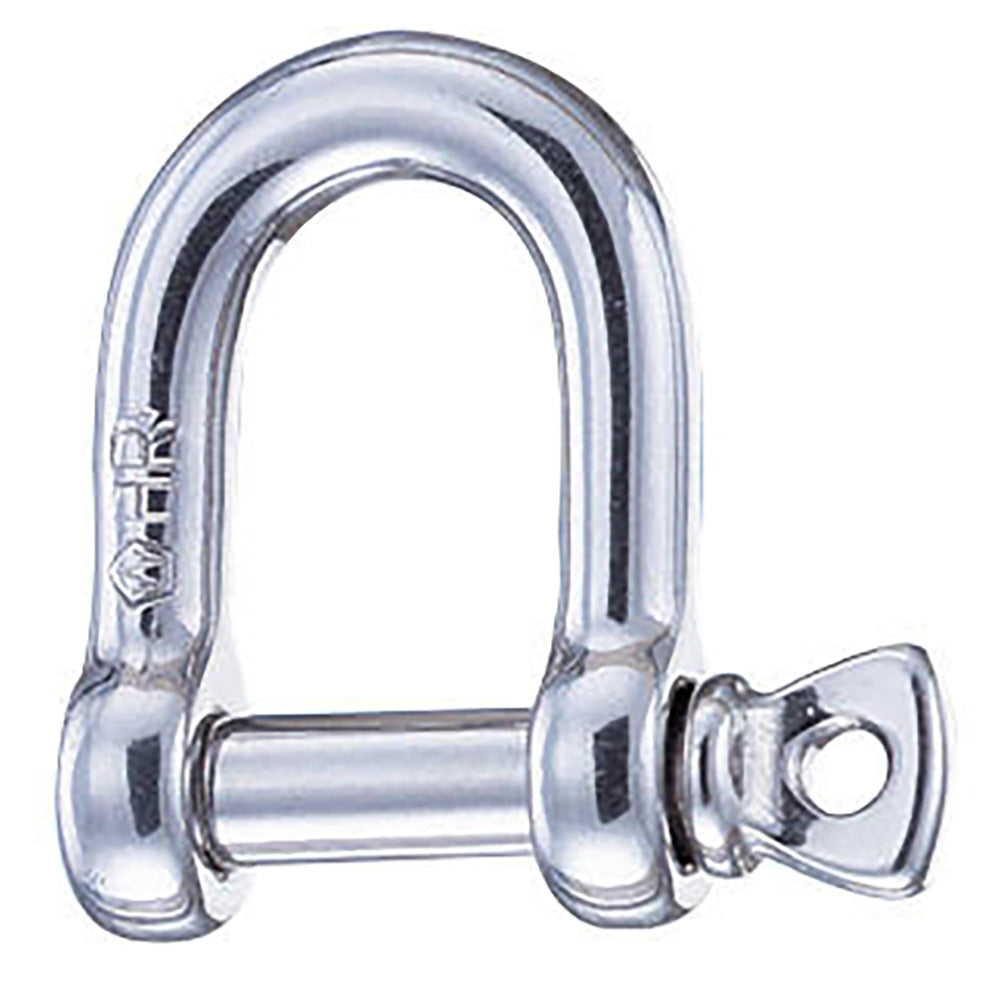

HR D Shackle - 14mm Diameter - 35/64"
Features:
- Forged D shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- Standard applications of the shackle
- Attachment applications: blocks, head …
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 11280 / (kg) 5120
- WLL: (lb) 5290 / (kg) 2400
- Breaking load: (lb) 26450 / (kg) 12000
- Weight: (lb) 0.67 / (g) 304

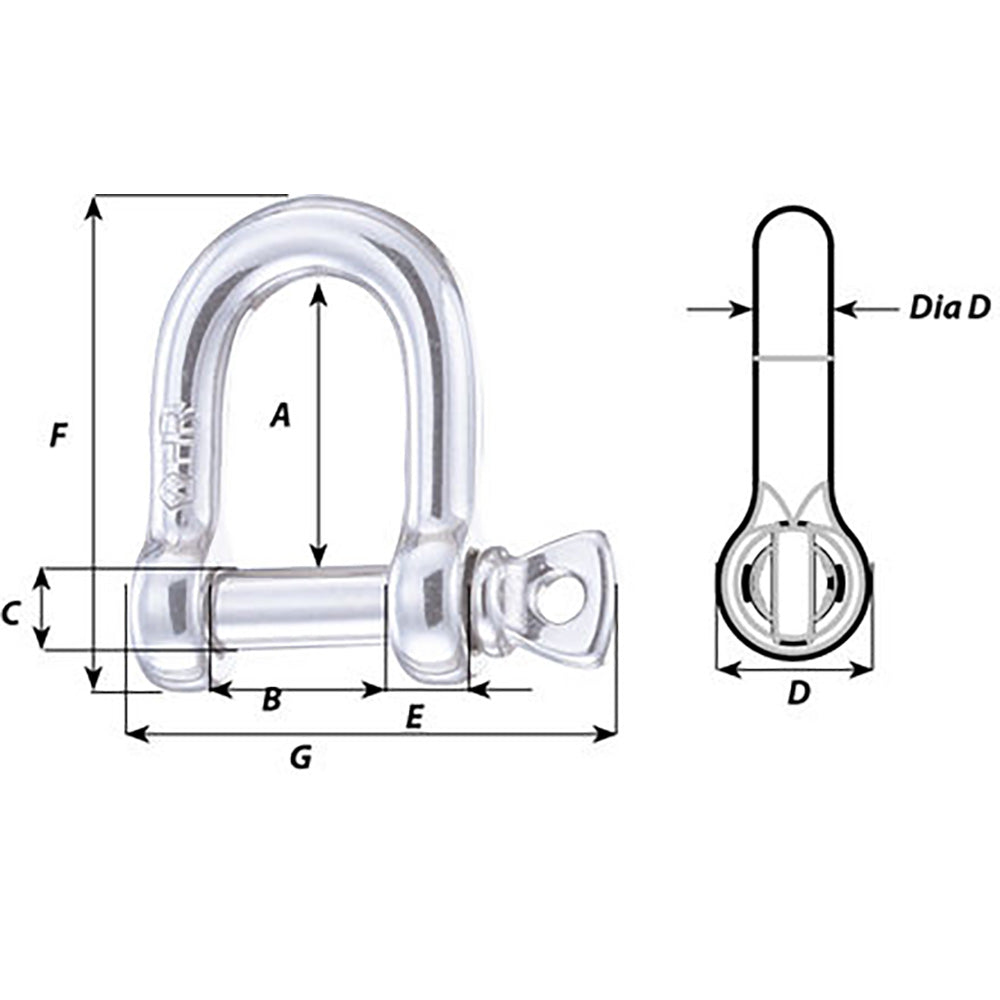

Dimensions:
- A: (inch) 1 59/64" / (mm) 49
- B: (inch) 1 7/64" / (mm) 28
- D diameter: (inch) 35/64" / (mm) 14
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Quick Guide (pdf)
